Freestanding Inflators with Nitrogen Inflation


Freestanding Inflator with Nitrogen Inflation

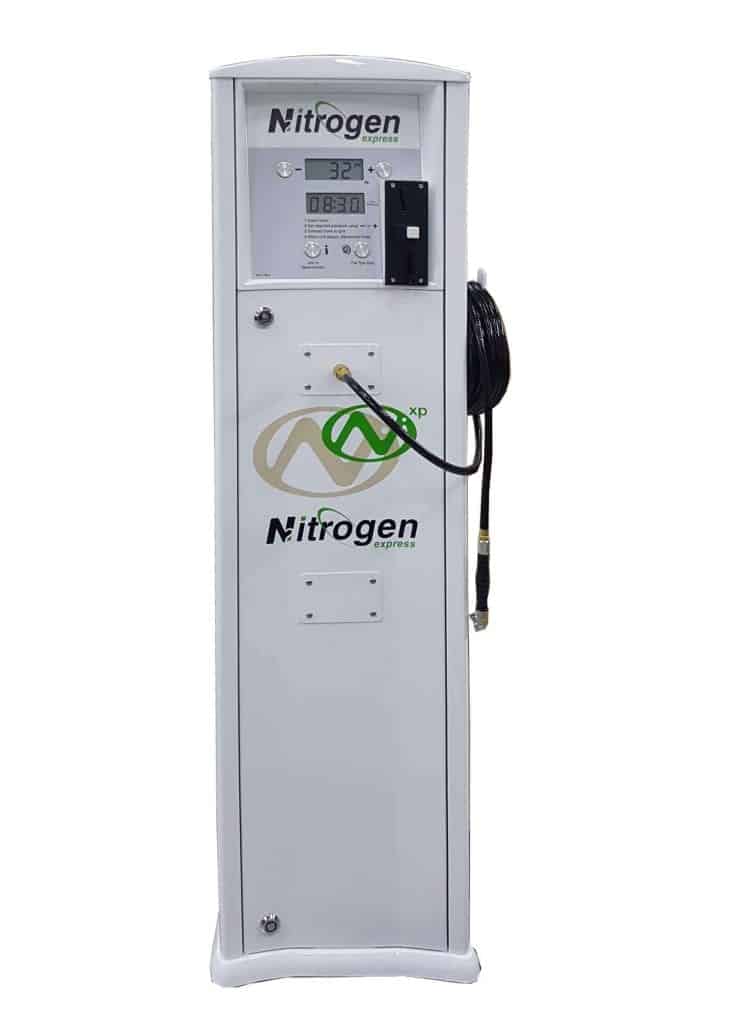

Introducing the new and innovative FRN, a dual display freestanding digital tyre inflator capable of filling tyres with Nitrogen. The unit has an in-built Nitrogen membrane to produce high purity Nitrogen, up to 99.5% (depending on inflation speed requirement). There is an option of a coin- operated mechanism. The second LCD display shows either actual tyre pressure or vend time remaining.

  • Fast and accurate digital inflation up to 145 psi / 10 bar
  • Nitrogen membrane module to produce up to 99.5% purity, depending on inflation speed requirements
  • Vandal resistant piezo switches
  • Optional coin-operated feature
  • Customised corporate image designs available
Technical Specifications
Construction Diecast aluminium enclosure (IP44)
Dimension 410 W x 1400 H x 450 D mm
Power requirements 220V-240VAC (optional 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
