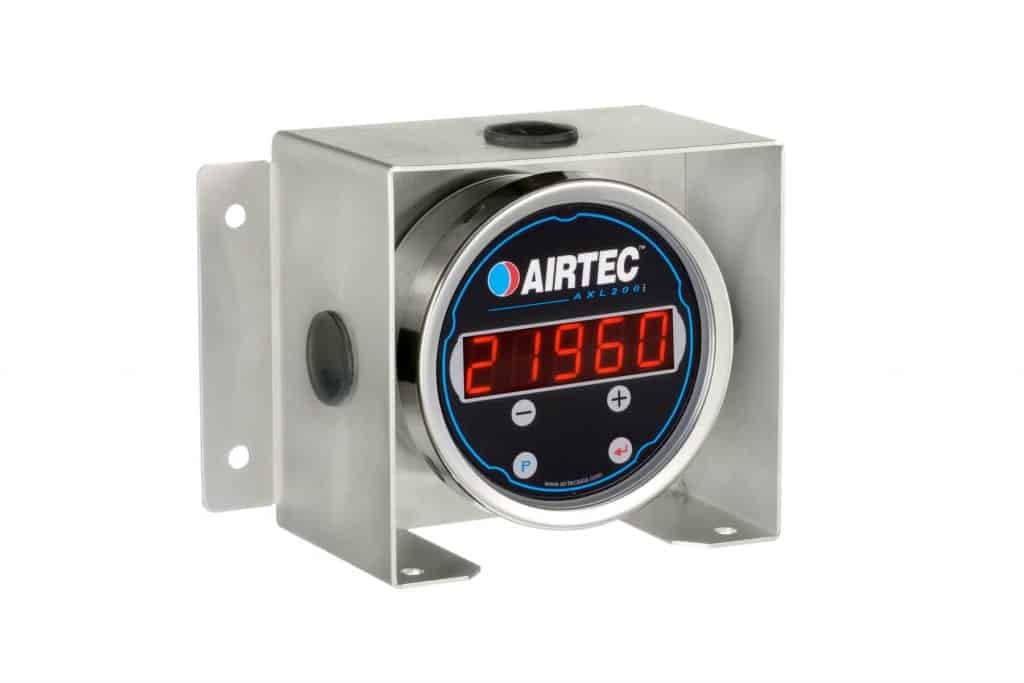

89AXL200/202
Axle Load Indicators
Axle Load Indicators
The 89AXL202/202 is a range of axle load measuring devices for convenient real-time monitoring of axle load on vehicles. It is designed for a pneumatic suspension system (air-bags). It provides a reliable and accurate solution for displaying the load on each axle group.
- Rugged stainless steel construction
- Display mode over-ride control
- Simple 2 stage calibration process
- 2 independent adjustable alarms
Technical Specifications
| Construction | Rugged stainless steel |
| Dimension | 220 W x 150 H x 100 D mm |
| Power requirements | 7-30VDC |
| Units of measurement | psi / kPa |
| Operating range | 0-120 psi, 0-825 kPa |
| Inlet Connection | ¼”/6mm push-to-connect fittings |
| Models available | 89AXL200 single sensor
89AXL202 dual sensor |

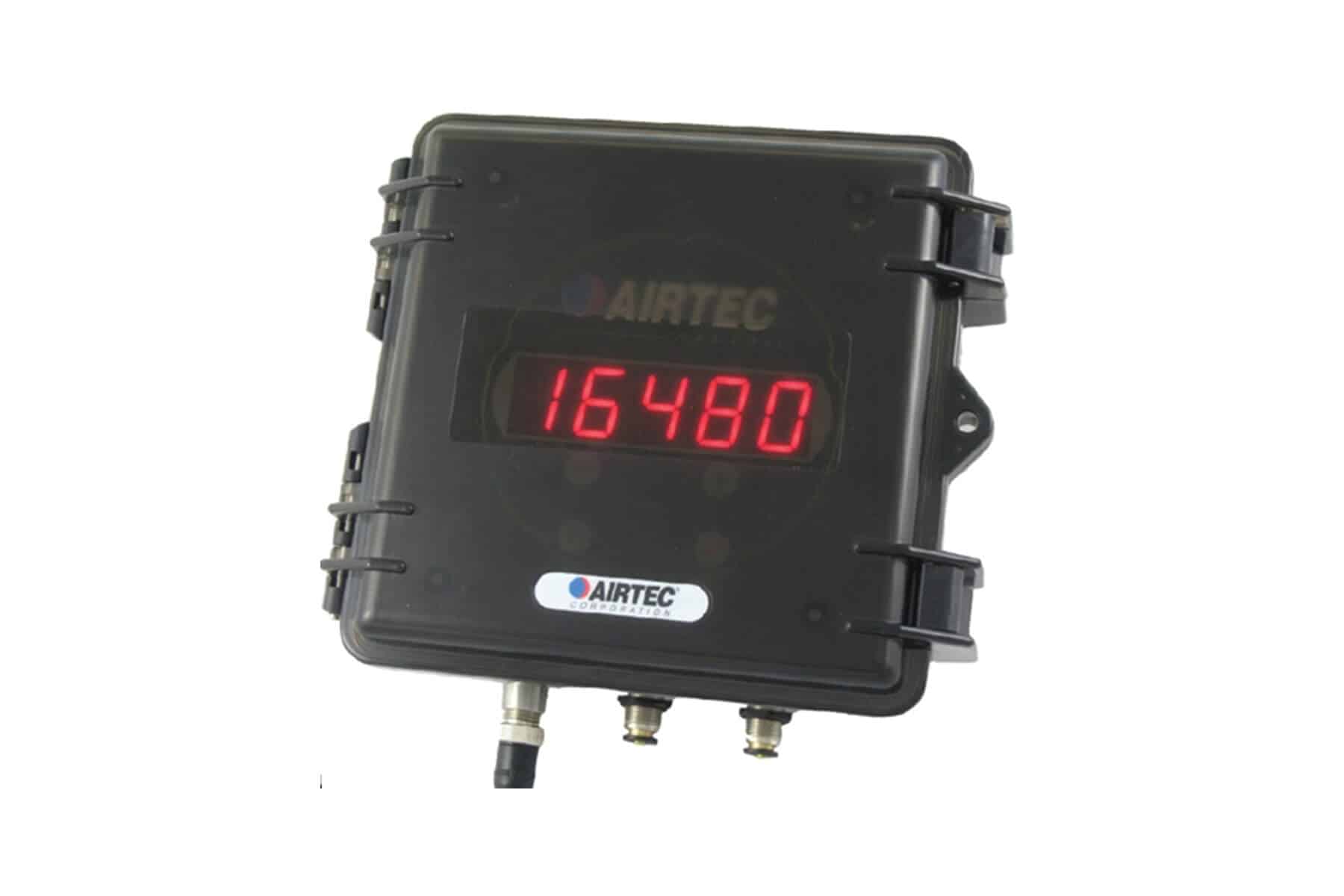

89AXL300/302
Axle Load Indicators
The 89AXL300/302 is a range of axle load measuring devices for convenient real-time monitoring of axle load on vehicles. It is designed for a pneumatic suspension system (air-bags). It provides a reliable and accurate solution for displaying the load on each axle group.
- Rugged stainless steel construction
- Display mode over-ride control
- Simple 2 stage calibration process
- 2 independent adjustable alarms
Technical Specifications
| Construction | High impact ABS / polycarbonate |
| Dimension | 188 W x 168 H x 76 D mm |
| Power requirements | 7-30VDC |
| Units of measurement | psi / kPa |
| Operating range | 0-120 psi, 0-825 kPa |
| Inlet Connection | ¼”/6mm push-to-connect fittings |
| Models available | 89AXL300 single sensor
89AXL302 dual sensor |
