Over Inflators

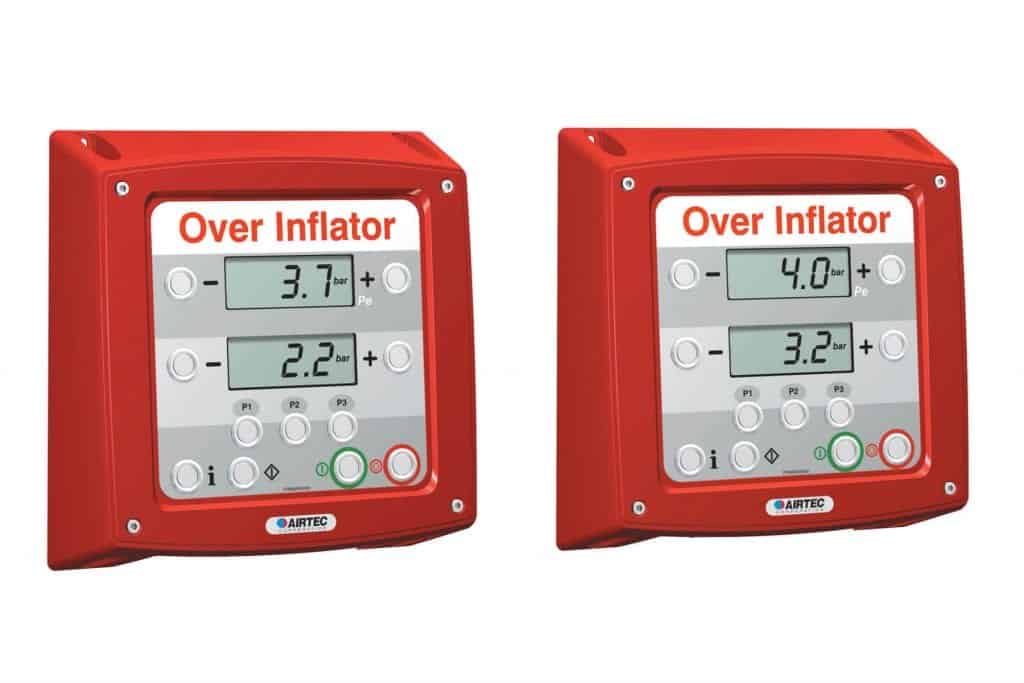

XDX-XDZ

Over Inflators

The XDX/XDZ models are designed specifically for the tyre fitting industry.

The desired over-pressure value can be set in the top display and the final pressure in the secondary display. The unit will automatically inflate to the over-pressure setting, then deflate to the final pressure setting.

  • Emergency stop control
  • Customisable preset pressure switches
  • Purge function for nitrogen inflation
Technical Specifications
Construction Diecast aluminium enclosure (IP66)
Dimension 269 W x 285 H x 106 D mm
Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
