Freestanding Inflators

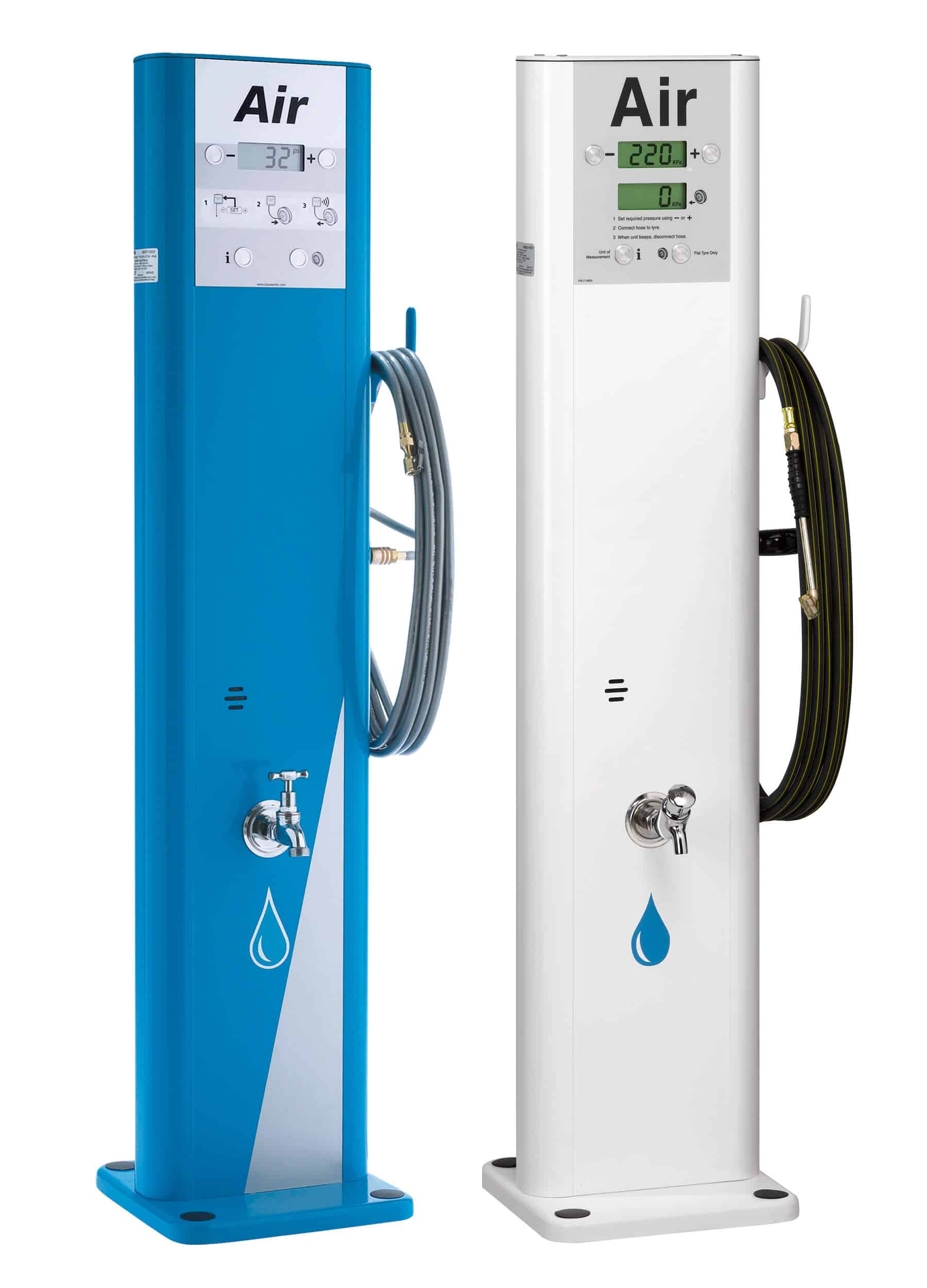

BEP/BED

Freestanding Digital Tyre Inflators (Round Profile)

The BEP and BED models are designed for the petroleum forecourts. It enhances site image and provides safe and accurate tyre inflation solutions. It is available in single and dual display versions and comes with a round profile.

  • Fast and accurate digital inflation up to 145 psi / 10 bar
  • Vandal resistant piezo switches
  • Supplied with 10m hose kit
  • Customised corporate image designs available
Technical Specifications
Construction Diecast aluminium enclosure (IP46)
Dimension 320 W x 1400 H x 320 D mm
Power requirements 220V-240VAC (optional 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range
XDS2
XDS10
Operating range
1-29 psi
5-145 psi
Accuracy +/- 0.5% FS

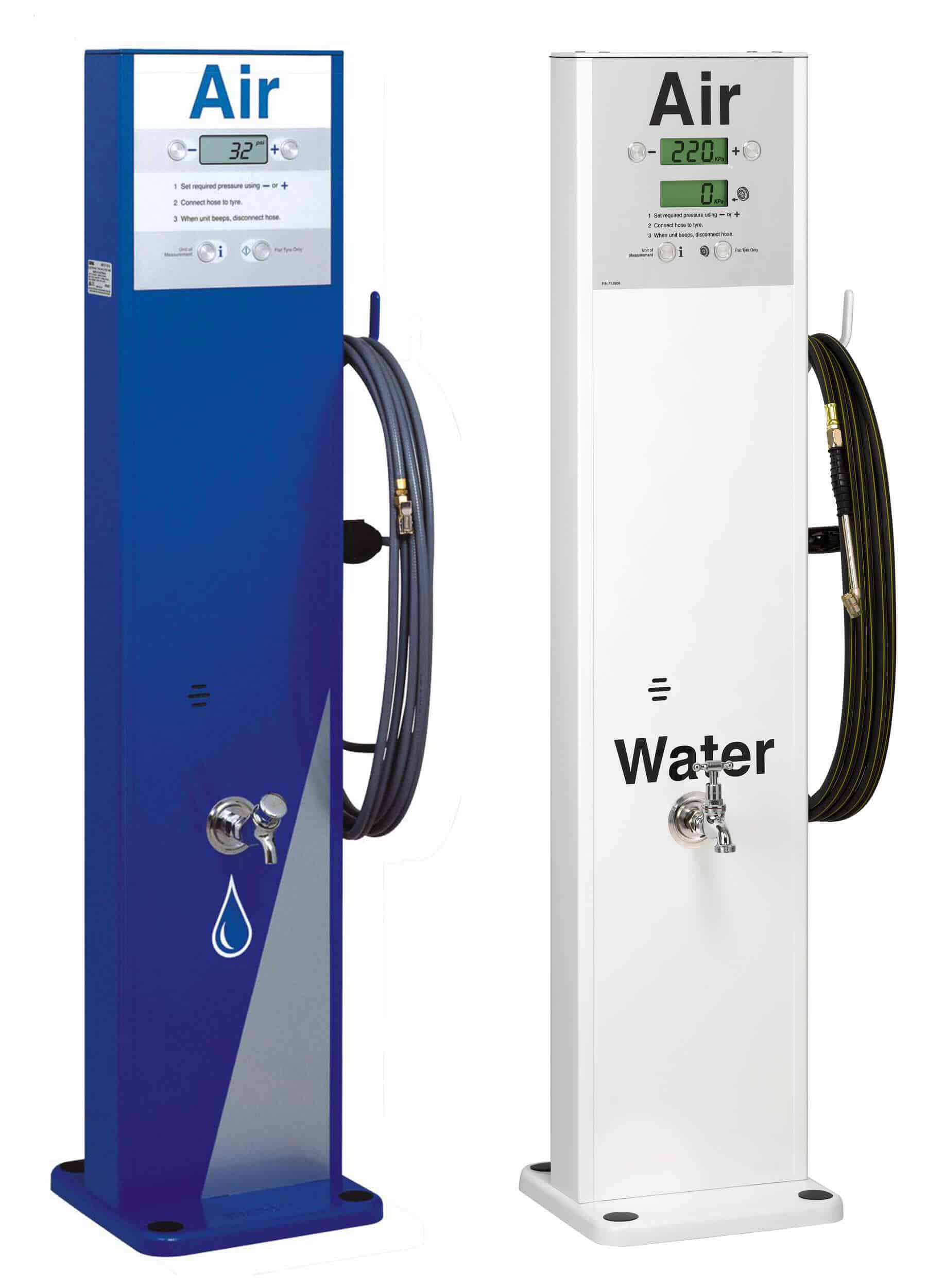

FEP/FED

Freestanding Digital Tyre Inflators (Square Profile)

The FEP and FED models are designed for the petroleum forecourts. It enhances site image and provides safe and accurate tyre inflation solutions. It is available in single and dual display versions and comes with a square profile.

  • Fast and accurate digital inflation up to 145 psi / 10 bar
  • Vandal resistant
  • Supplied with 10m hose kit
  • Customised corporate image designs available
Technical Specifications
Construction Diecast aluminium enclosure (IP46)
Dimension 320 W x 1400 H x 320 D mm
Power requirements 220V-240VAC (optional 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS

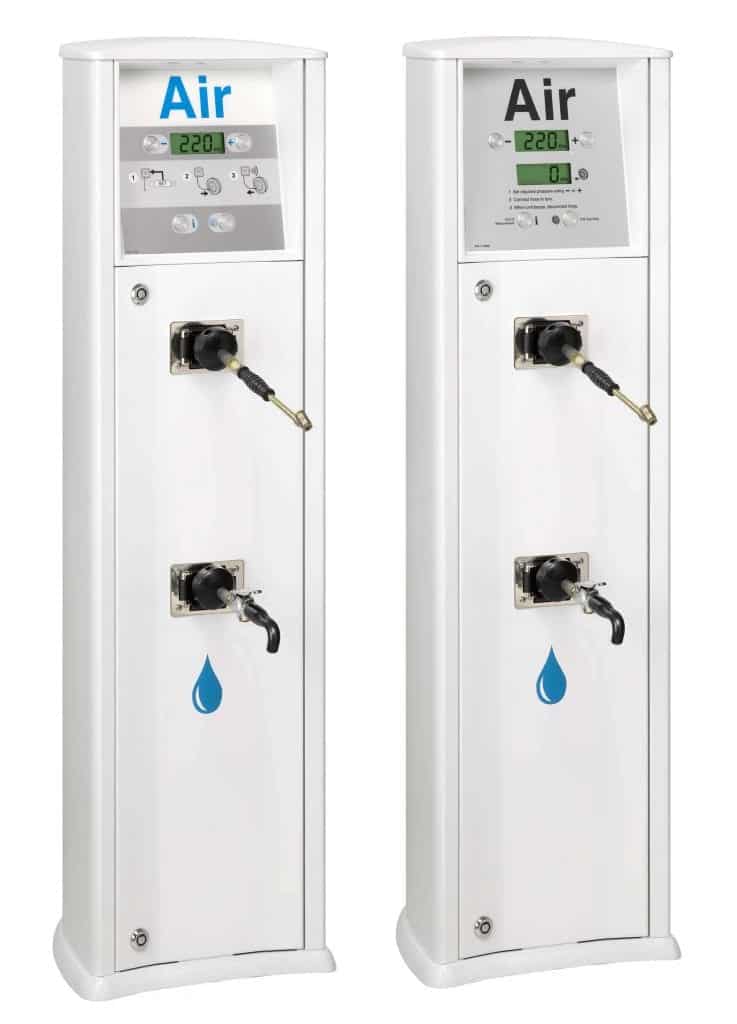

FRP/FRD

Freestanding Digital Tyre Inflators (with Normal / Retractable / Slow Retract Hoses)

The FRP/FRD features normal, retractable or slow retract hoses with optional in-built compressor. Its futuristic shape and ergonomic design blends well with any corporate image and is available in single and dual display versions.

  • Fast and accurate digital inflation up to 145 psi / 10 bar
  • 3 hose options – 10m hose kit, 7m steel wire braided hose assembly or 7m slow retract hose
  • Vandal resistant piezo switches
  • Innovative award winning design
  • Customised corporate image designs available
Technical Specifications
Construction Diecast aluminium enclosure (IP44)
Dimension 410 W x 1400 H x 450 D mm
Power requirements 220V-240VAC (optional 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm² (without in-built compressor)
5-116 psi / 35-800 kPa / 0.3-8.0 bar / 0.4-8.1 kg/cm² (with in-built compressor)
Accuracy +/- 0.5% FS

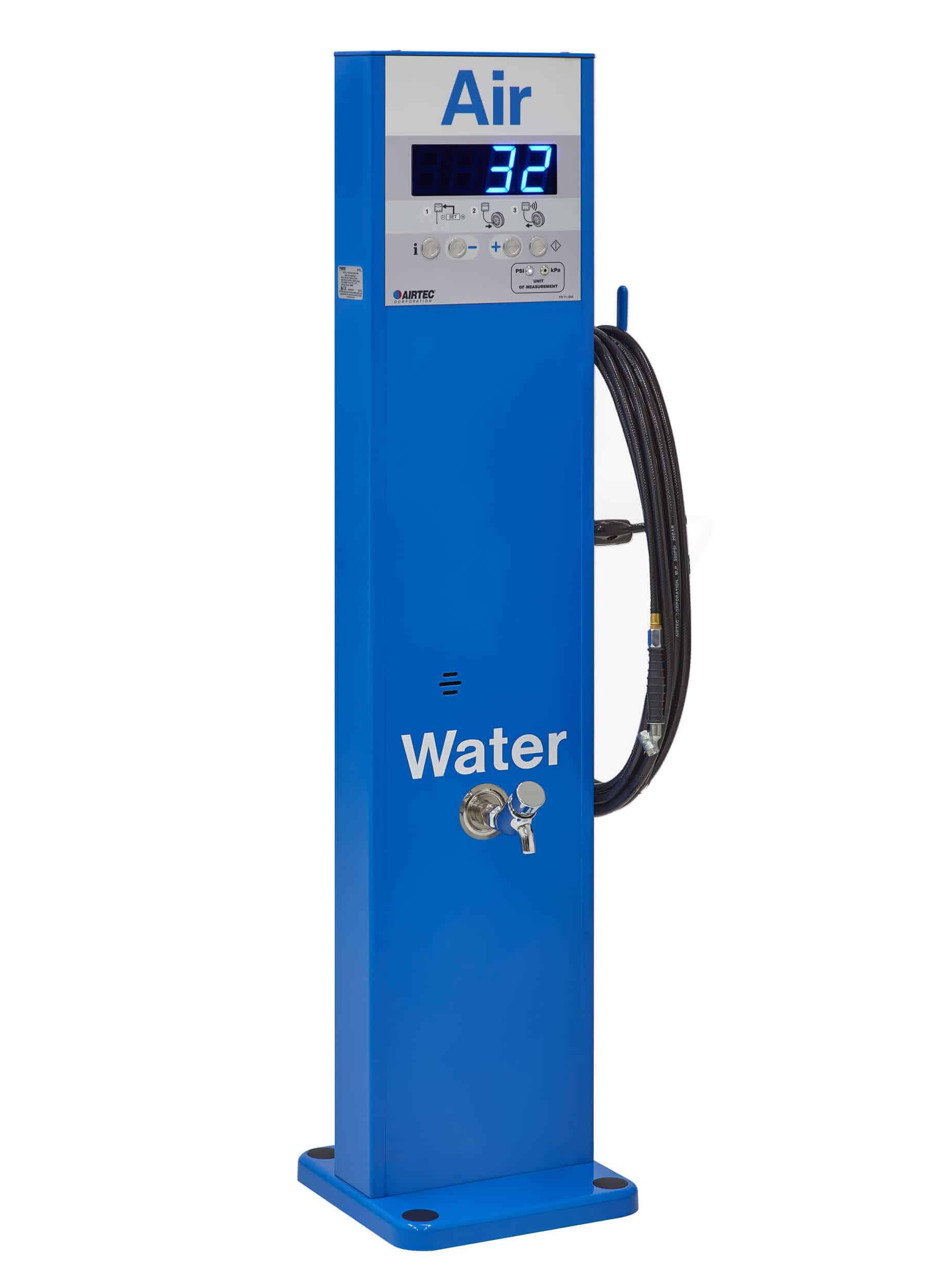

FEL

Freestanding Digital Tyre Inflator (with Large Display)

Based on the FEP freestanding unit, the FEL offers a significantly larger and brighter display, as compared to the standard LCD.

On a petroleum forecourt, the display is prominent and draws attention with its distinctive glow. The lens colour and faceplate can be customised to suit your corporate image and local language.

  • Fast and accurate digital inflation up to 145 psi / 10 bar
  • Supplied with 10m hose kit
  • 57mm digits visible from a long distance (as compared to the standard 25mm digits)
  • Vandal resistant piezo switches
  • Displays up to two units of measurement or indication of inflation/deflation cycle
Technical Specifications
Construction Diecast aluminium enclosure (IP46)
Dimension 320 W x 1400 H x 320 D mm
Power requirements 220V-240VAC (optional 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
