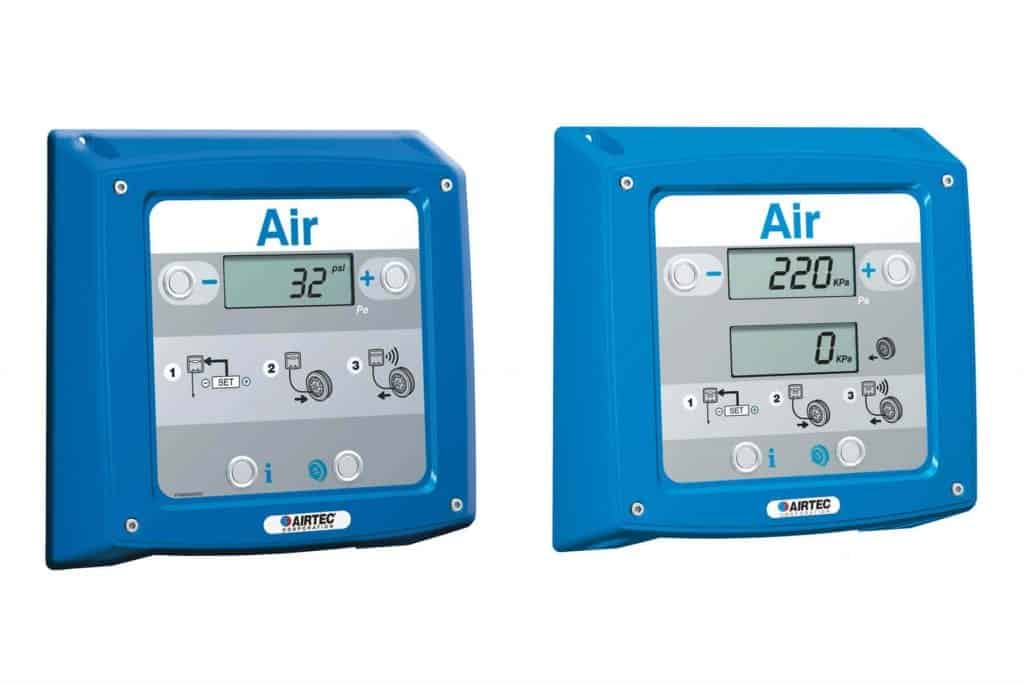

XDA is a heavy duty automatic digital tyre inflator suitable for a wide range of tyre inflation applications including service centres and petroleum forecourts. The XDD is a dual display tyre inflator. The top display shows the set pressure and the bottom display shows the actual tyre pressure during inflation.
- Fast and accurate digital inflation up to 145 psi / 10 bar
- Supplied with 10m hose kit
- Rugged and durable IP66 rated diecast aluminium enclosure
- Stainless steel switches (piezo switches as an option)
Technical Specifications
Construction | Diecast aluminium wall / surface mount enclosure (IP66) |
Dimension | 269 W x 285 H x 106 D mm |
Power requirements | 220V-240VAC (optional 100~120VAC) |
Units of measurement | psi / kPa / bar / kg/cm² |
Operating range | 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm² |
Accuracy | +/- 0.5% FS |
