Temperature Compensating Inflators

89XTC

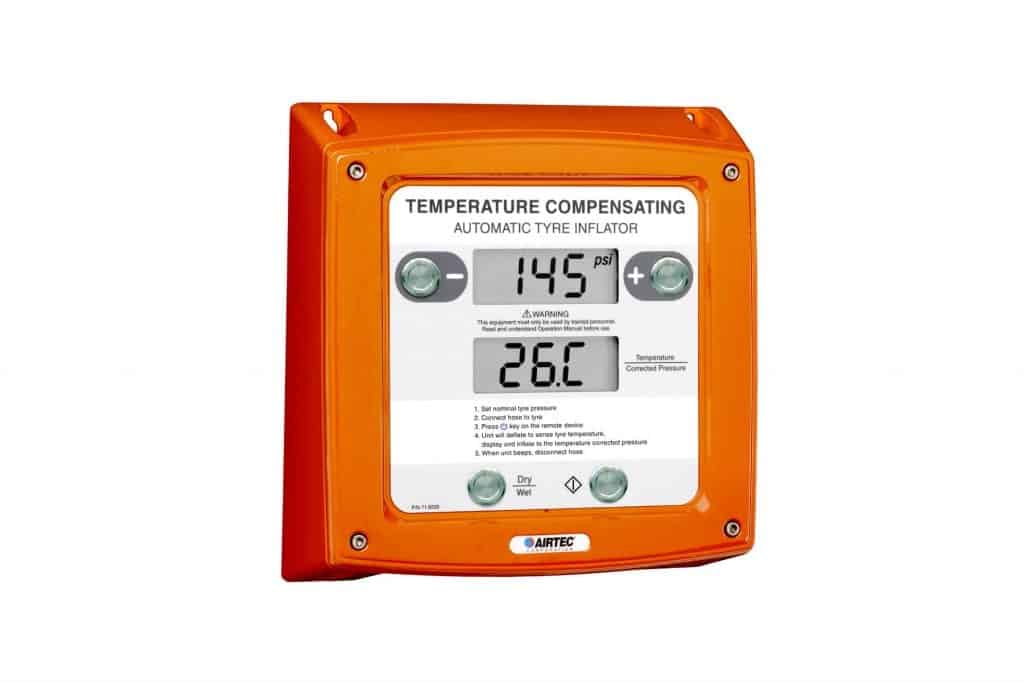

Temperature Compensating Inflator

Specifically designed for OTR and mining applications, the 89XTC measures both the tyre’s air temperature and pressure and automatically adjusts the tyre inflation pressure to equate for the difference in temperature from a defined ambient temperature of the environment in which the tyre normally operates. The correction is performed against a well-established temperature/pressure correction table programmed into the unit.

The 89XTC delivers un-paralleled accuracy for maintaining industrial and mining tyres; helps extend the working life and operation of your tyre assets and maintain safe working conditions for your site operations.

  • Fast and accurate digital inflation up to 145 psi / 10 bar
  • Supplied with 20m hose kit
  • Wet and dry tyre pressure compensation (for normal and liquid filled tyres)
  • Vandal resistant piezo switches
Technical Specifications
Construction Diecast aluminium enclosure (IP66)
Dimension 269 W x 285 H x 106 D mm
Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
