Large Display Inflators

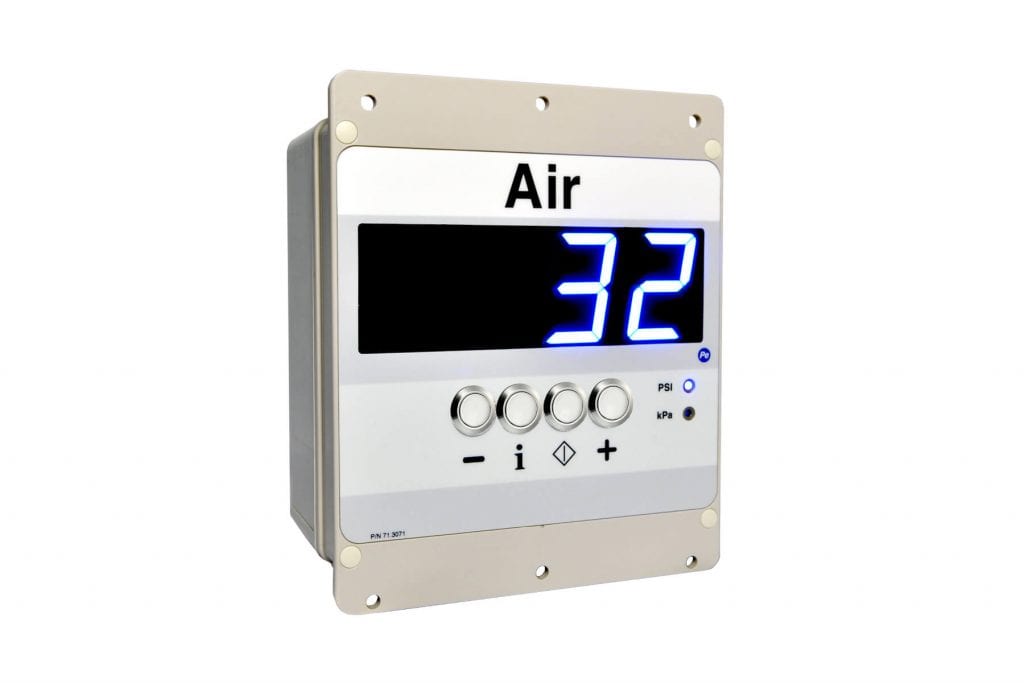

Large Display Inflator

The MLF offers a significantly larger and brighter LCD display, compared to the standard LCD. This model is specially designed for use in truck workshops and inflation of large vehicles where operators have difficulties in viewing the inflator display. The MLF is designed for panel or recess mounting (suited for OEM applications) and there are choices of colours to choose for the display lens.

  • 57mm high digits display visible from a long distance
  • Option of either stainless steel mechanical switches or vandal resistant piezo switches
  • Displays up to two units of measurement or indicator of inflation/deflation cycle
Technical Specifications
Construction High impact polycarbonate enclosure (IP66)
Dimension 220 W x 260 H x 100 D mm
Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
