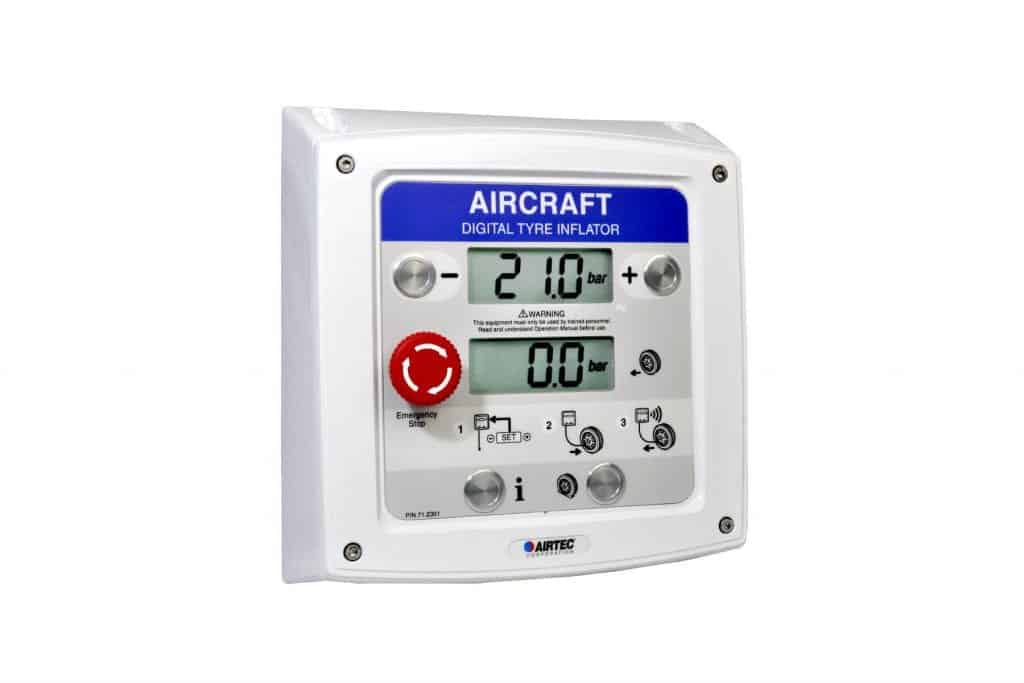

89XDH
Digital Aircraft Inflator (Wall/Surface Mount)
Digital Aircraft Tyre Inflators
Precise and robust, our digital aircraft tyre inflators are engineered for the rigorous demands of aviation. They ensure accurate, high-pressure inflation vital for aircraft safety and performance, offering advanced features for seamless operation in any environment. Built tough, they deliver reliability for every ground support team.
The 89XDH is a versatile and accurate digital inflator designed specifically for inflating high-pressure tyres used by the aviation industry for aircraft. Utilising our proven digital inflation technology, the 89XDH boasts an accuracy of +/- 0.5% full scale, is factory calibrated to ISO/IEC 17025 and compliant with BS EN 12645 and 86/217/EEC standards. High precision and easy-to-use digital controls eliminate reading errors and safety risks associated with mechanical and handheld tyre inflators.
The dual-display LCD screen shows the actual tyre pressure and the set pressure. In addition, the screen is backlit for easy operation at any time of day or night.
Why Choose 89XDH Aircraft Tyre Inflator?
- Safe, accurate and easy to use
- Accurate and high pressure digital inflation up to 305 psi / 21 bar
- Supplied with 7.5m steel wire braided hose
- Vandal-resistant piezo switches
- Calibrated in accordance with ISO/IEC 17025 and supplied with a certificate
Technical Specifications of 89XDH Aircraft Tyre Inflator
| Construction | Diecast aluminium enclosure (IP66) |
| Dimension | 269 W x 285 H x 106 D mm |
| Power requirements | 220V-240VAC (optional 12VDC or 100~120VAC) |
| Units of measurement | psi / kPa / bar |
| Operating range | 10-305 psi / 700-2100 kPa / 0.7-21.0 bar |
| Accuracy | +/- 0.5% FS |

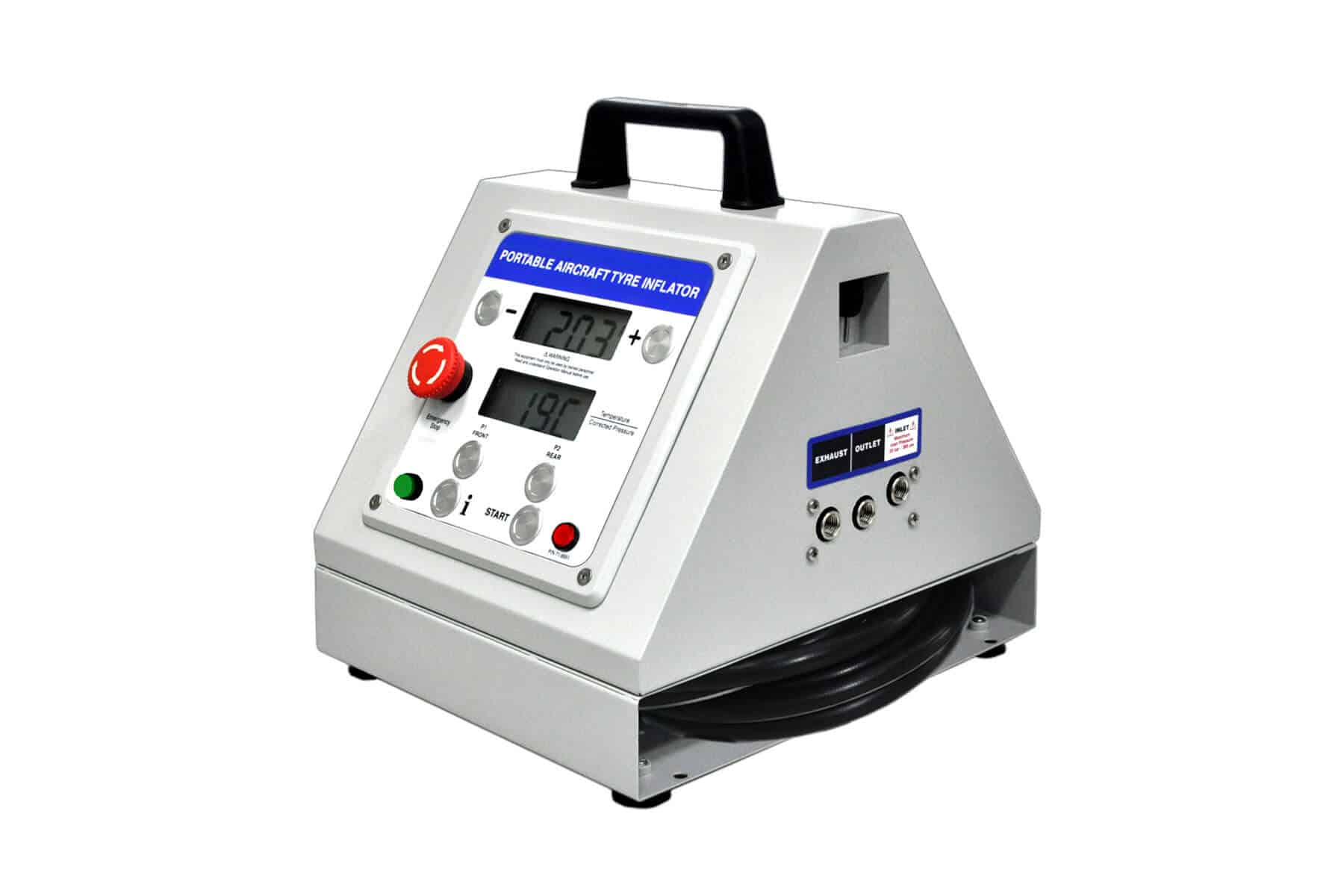

89ATC
Digital Aircraft Inflator (Portable)
The 89ATC is a portable and high-pressure digital aircraft tyre inflator. The unit is compact, durable and lightweight for carrying around the tarmac. It features a small compartment below the unit to store up to 7.5m of high-pressure hose.
The unit features a host of smart safety features including customisable start-up and set pressure range, default to safe setting option and an emergency stop button.
Featuring a rechargeable Li-ion battery system in an integrated IP66 enclosure delivers long-life reliable power without having to recharge after each use.
Why Choose 89XDH Aircraft Tyre Inflator?
- Accurate and high-pressure digital inflation up to 305 psi / 21 bar
- Portable and durable steel frame, weather-proof body
- Supplied with 7.5m steel wire braided hose
- Vandal-resistant piezo switches
- Temperature compensation feature (as an option)
Technical Specifications of 89XDH Aircraft Tyre Inflator
| Construction | Powder-coated steel frame, weather-proof |
| Dimension | 300 W x 300 H x 350 D mm |
| Power requirements | 12-16VDC (supplied via long-life Li-ion battery) |
| Units of measurement | psi / kPa / bar |
| Operating range | 10-305 psi / 700-2100 kPa / 0.7-21.0 bar |
| Accuracy | +/- 0.5% FS |

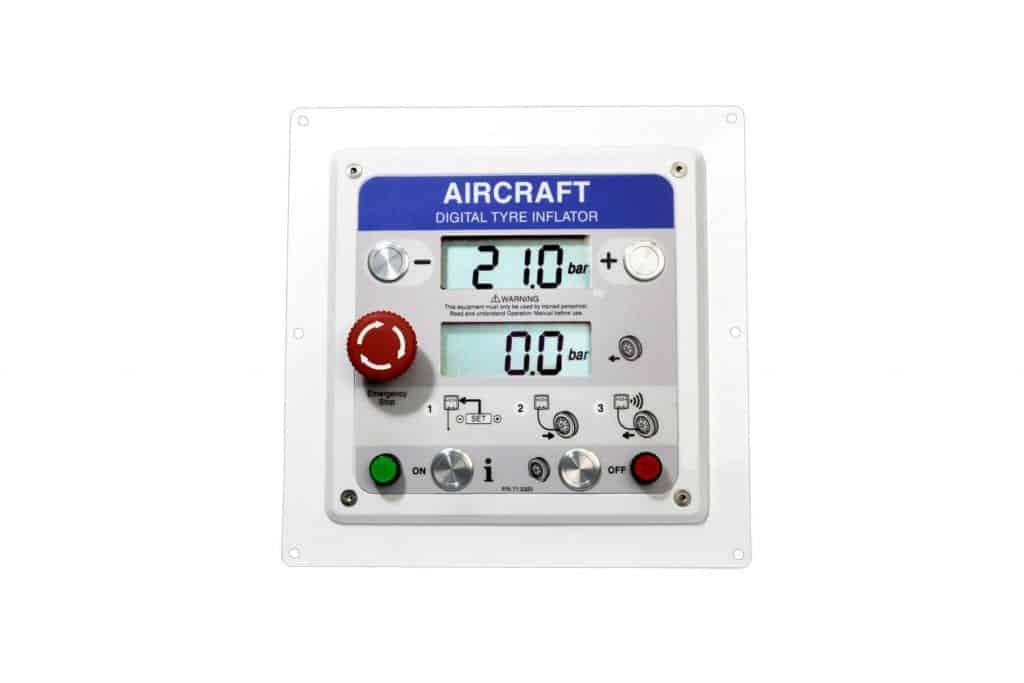

89ODH
Digital Aircraft Inflator (Panel Mount)
The 89ODH is a compact, panel-mount aircraft digital tyre inflator, designed for integration into a nitrogen cart or service vehicle and can be fixed inside an enclosure or to a dedicated frame or mounting panel. The module works in conjunction with a pressure regulator and a relief valve connected to a nitrogen supply to provide superior safety and pressure control.
Why Choose 89XDH Aircraft Tyre Inflator?
- Accurate and high-pressure digital inflation up to 305 psi / 21 bar
- Weather-proof front panel with durable steel construction
- Vandal-resistant piezo switches
Technical Specifications of 89XDH Aircraft Inflator
| Construction | Powder-coated steel enclosure, weather-proof front panel |
| Dimension | 270 W x 270 H x 145 D mm |
| Power requirements | 12-16VDC (supplied via long-life Li-ion battery) |
| Units of measurement | psi / kPa / bar |
| Operating range | 10-305 psi / 700-2100 kPa / 0.7-21.0 bar |
| Accuracy | +/- 0.5% FS |
Digital Aircraft Tyre Inflator Vs. Normal Tyre Inflator: Differences
Digital aircraft tyre inflators are specialised tools designed to meet the unique demands of aviation tyre maintenance, differing significantly from standard tyre inflators.
- Higher air pressure: Aircraft tyres require inflation pressures ranging from 150 to over 200 psi, necessitating inflators capable of handling such high pressures. In contrast, standard tyre inflators are designed for lower pressures.
- Outdoor and demanding environments: The aircraft inflators are built to withstand harsh outdoor conditions, in contrast to normal tyre inflators are used in less demanding conditions.
- Use of nitrogen: Aircraft tyre inflators use compressed nitrogen, unlike tyres on road transport vehicles, which are typically inflated with air.
- Higher precision: They offer higher precision than normal tyre inflators. This difference is driven by the extreme demands and critical safety requirements inherent in aviation.
What to Look for in a Digital Aircraft Tyre Inflator?
When selecting a digital aircraft tyre inflator, several critical factors ensure safety, accuracy, and reliability in aviation maintenance:
Product construction
Durability is key for tyre inflators used in demanding aviation environments. Look for heavy-duty, weatherproof construction, like the die-cast aluminium enclosure, with an IP66 rating for dust and water resistance. Moreover, features like backlit LCDs are vital for clear readings in all lighting conditions, and piezo control switches offer robust, reliable operation.
Operating Range
Aircraft tyres require significantly higher pressures than standard vehicle tyres. The inflator’s operating range must accommodate this, typically supporting pressures up to 305 PSI. This ensures it can handle the full spectrum of aviation tyre pressures.
Accuracy
Precision is paramount for aircraft safety. Opt for inflators with high accuracy, such as ±0.5% full scale accuracy. Additionally, ensure the unit is factory calibrated to ISO/IEC 17025 standards and supplied with a calibration certificate, guaranteeing reliable and precise measurements.
Units of Measurement
When selecting a digital aircraft tyre inflator, ensure it supports multiple units of measurement. Commonly, you’ll find PSI (pounds per square inch) used in the US and often in the UK, while bar is prevalent across Europe. Kilopascals (kPa) are standard in countries like Canada and Australia, and kg/cm² is typically used in Japan.
Why Choose Our Aviation Tyre Inflator?
When it comes to precision and durability in aviation maintenance, our digital aircraft tyre inflators stand out. Here’s why:
Trusted Expertise with 30 Years of Industry Experience
Airtec Corporation has been a trusted name in inflation technology since 1995. With over three decades of dedicated experience, we understand the rigorous demands of aviation ground support. Our deep industry knowledge ensures every tyre inflator is designed with safety, reliability, and compliance in mind.
Certified Accuracy and Quality You Can Trust
Our tyre inflators are calibrated in accordance with ISO/IEC 17025 standards, international benchmarks for calibration. Each unit comes with a calibration certificate, giving users the confidence of precise, repeatable pressure readings vital for aviation applications.
Built Tough for Demanding Conditions
Our aviation tyre inflators are engineered for durability. Weatherproof and rugged, they are designed to perform reliably in outdoor and harsh environments. Additionally, they are compatible with multiple gases including nitrogen, oxygen, and compressed air, making them highly versatile and adaptable to diverse operational needs.
Frequently Asked Questions About Aviation Tyre Inflators
- Can the aircraft tyre inflator be used as an air compressor?
No, an aircraft tyre inflator cannot be used as an air compressor. An inflator is designed to precisely regulate pressure for tyre inflation, while a compressor generates and stores high-pressure air for various tools and applications. They serve different functions.
- What is used to inflate aircraft tyres?
Aircraft tyres are typically inflated using a nitrogen tyre inflator containing compressed nitrogen. Nitrogen is preferred over regular air because it is inert, non-flammable, and moisture-free, which helps maintain stable tyre pressure and reduces the risk of fire or oxidation inside the tyre.
- How much PSI is in airplane tyres?
Airplane tyre pressures vary, but typically range from 150 to over 200 PSI, depending on the aircraft type and its specific requirements. Our inflator offers high-pressure inflation up to 305 PSI, ensuring precise inflation for diverse aircraft types.
- Where does Airtec Corporation supply its aviation tyre inflators?
Airtec Corporation supplies its high-quality aviation tyre inflators and other heavy-pressure tyre inflators to customers globally. Our products are trusted across aviation sectors worldwide. Contact us today to learn how we can support your operational needs.
